FEATURES

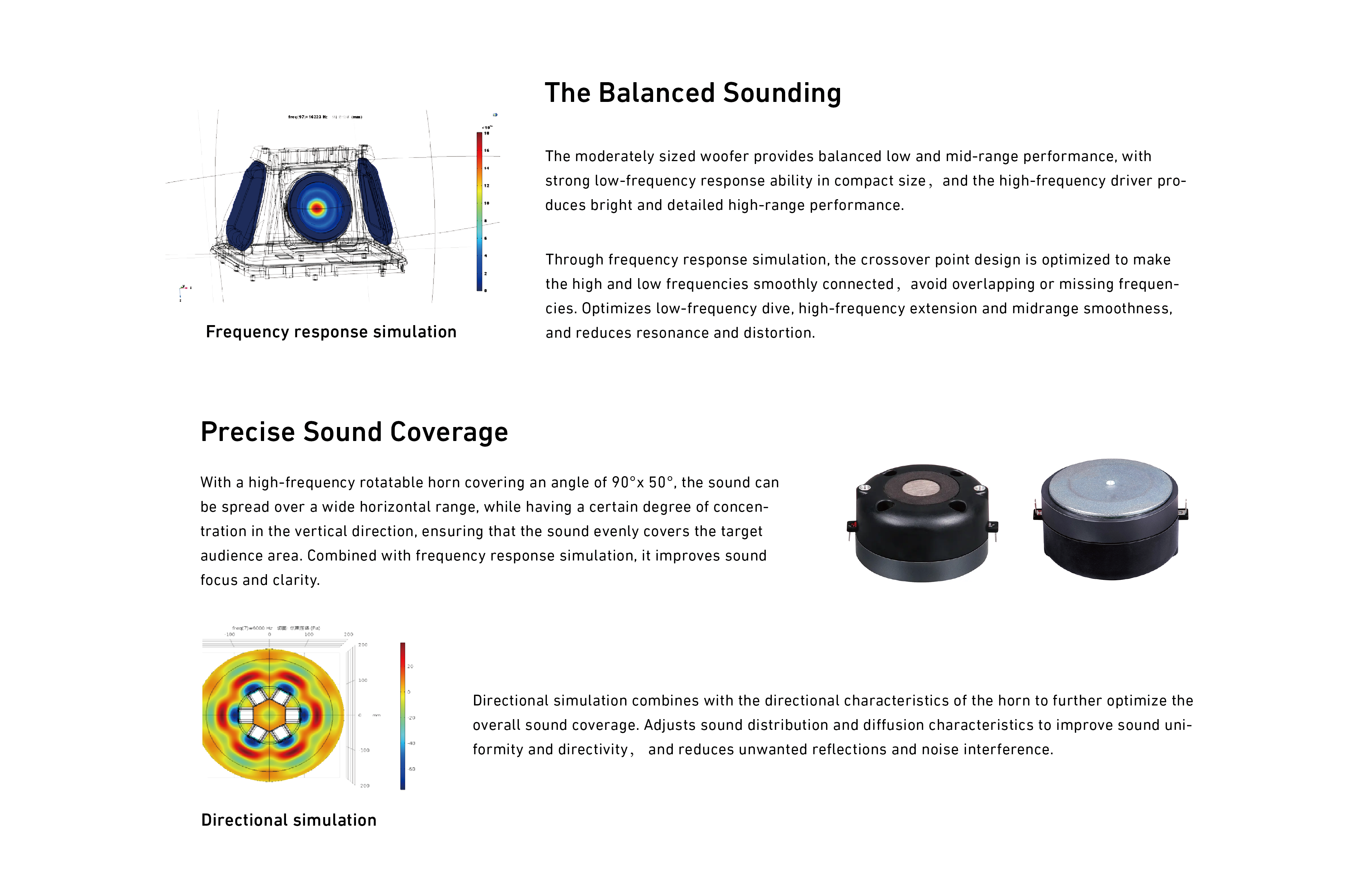

Skjern 08PF, an 8-inch two-way full-range speaker, delivers balanced sound quality in its compact size and light weight housing. Equipped with 1 x 8-inch high-efficiency bass/midrange unit and 1 x 1-inch exit throat 25mm fiber cone high-frequency driver with a 90° x 50° rotatable horn, it ensures precise directivity of the sound. The cabinet is made of multi-layer composite plywood with abrasion-resistant polyurea paint for enhanced durability.
TECHNICAL SPECIFICATIONS
- TECHNICAL SPECIFICATIONS
-
FREQUENCY RESPONSE
60Hz-18kHz
-
DRIVERS
1x8"(200mm)/2"voice coil LF1x1"(25mm)/1"voice coil HF
-
RATED POWER
150W RMS, 600W peak
-
SENSITIVITY
93dB 1watt/1 meter
-
MAXIMUM SPL
115 dB continuous, 121 dB peak
-
IMPEDANCE
8 ohms nominal
-
DISPERSION(-6dB)
90°x50°
-
CROSSOVER FREQUENCIES
2.8kHz passive
-
INPUT CONNECTORS
Covered barrier strip terminals
-
DIMENSIONS
(W)250mm x (H)450mm x (D)240mm
-
NET WEIGHT
10kg/pc
Accessories

Rigging bracket (1)

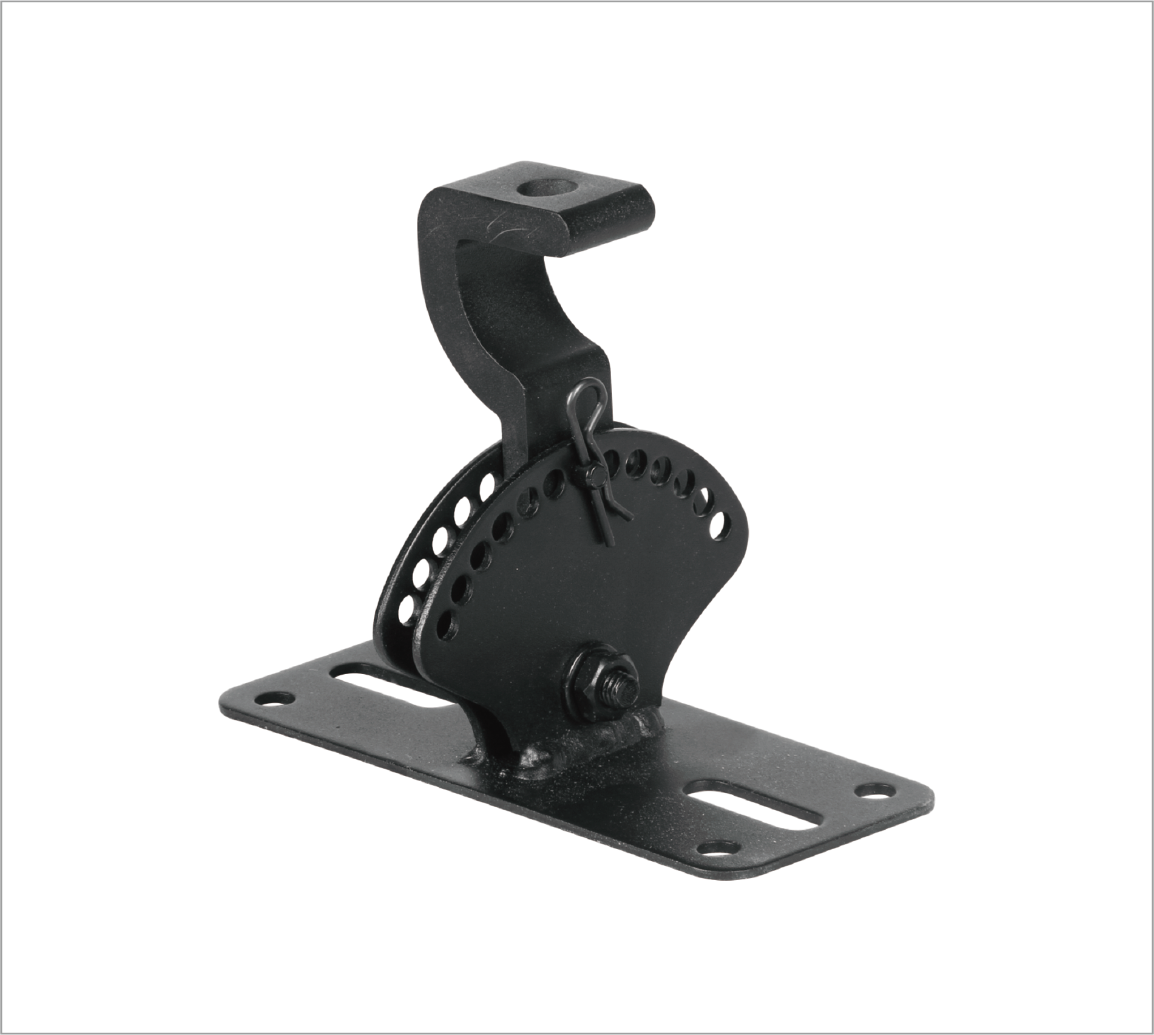

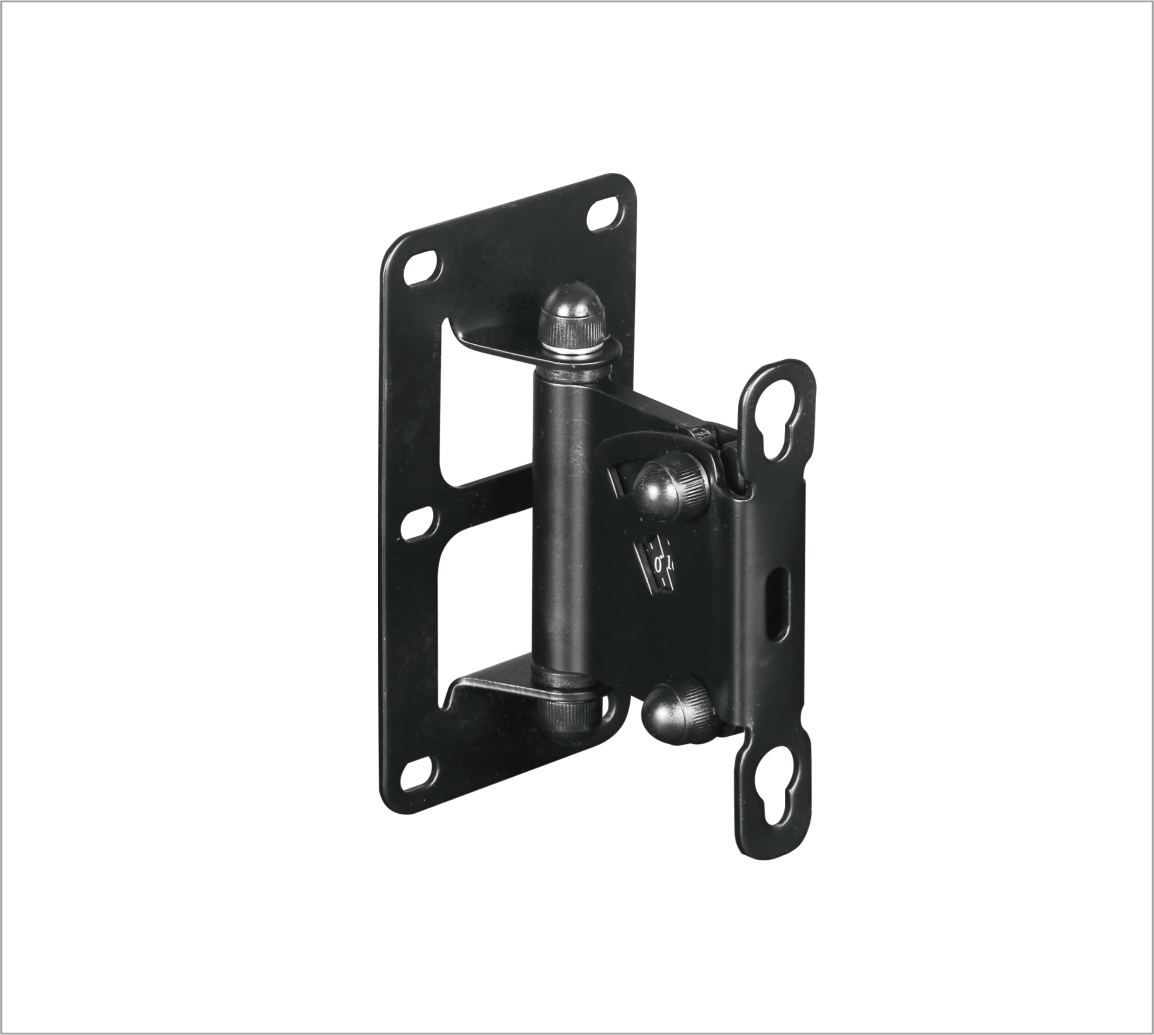

WALL BRACKET (4)

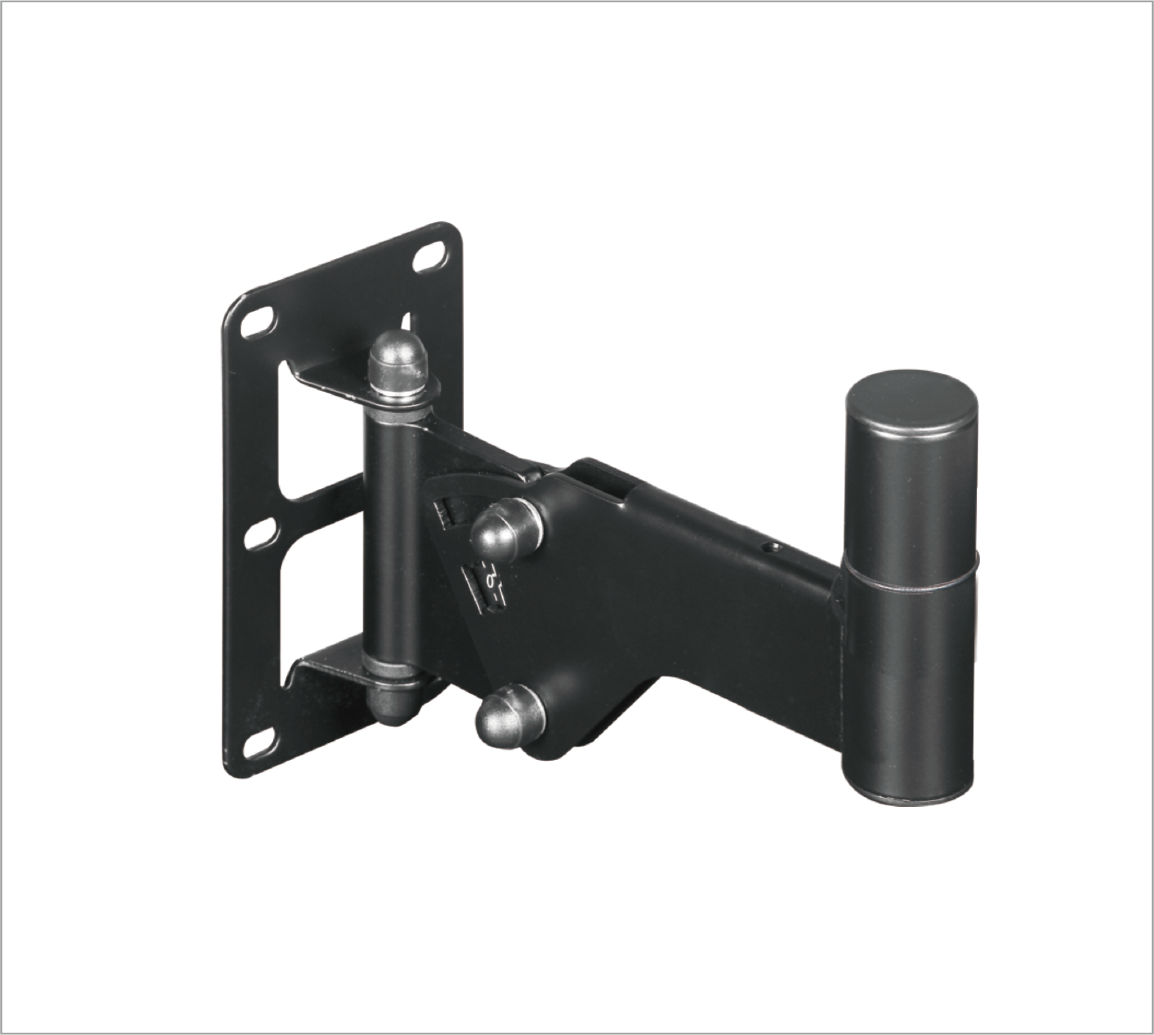

Wall bracket (1-1)

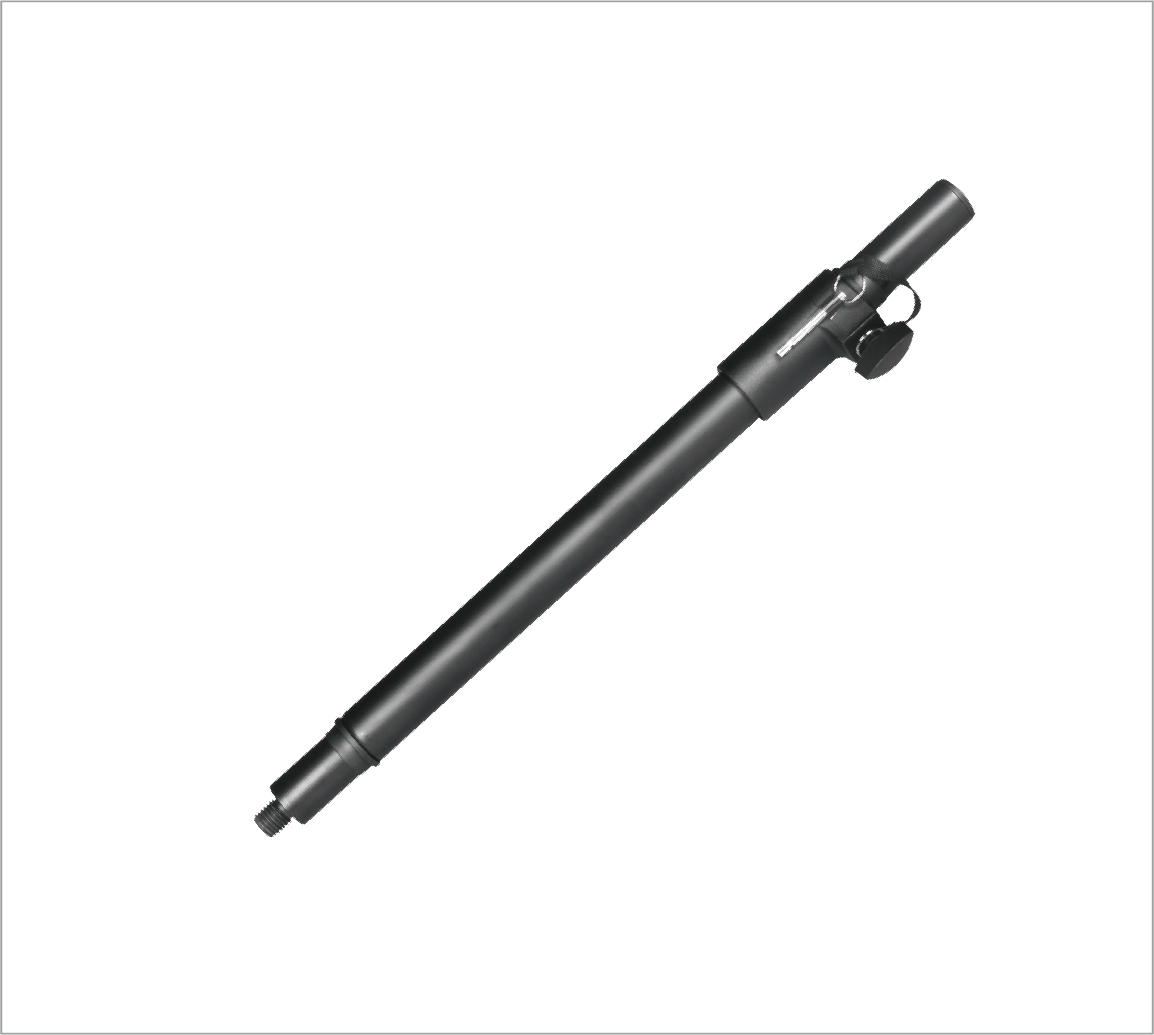

Flexible pole

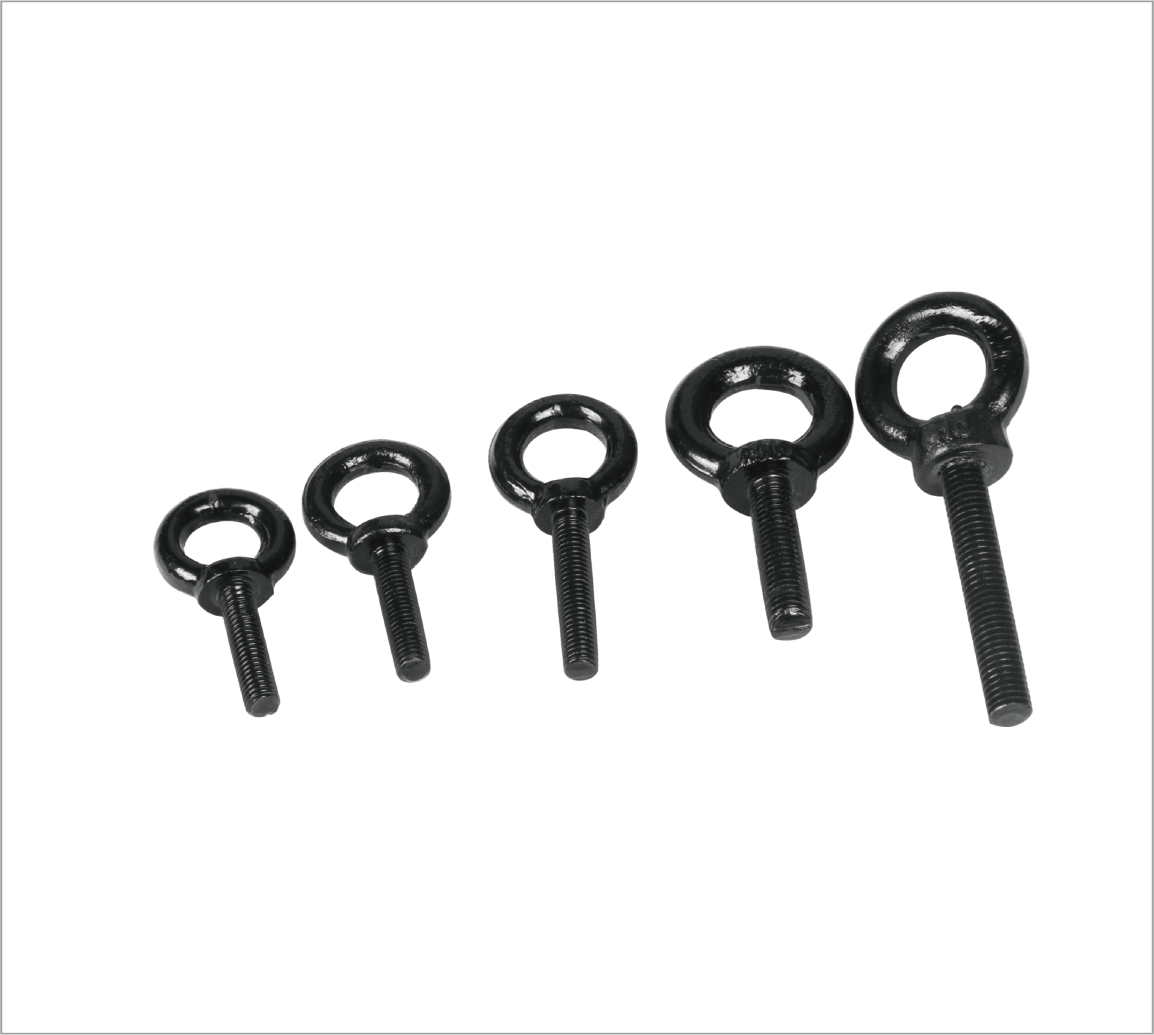

Flying ring

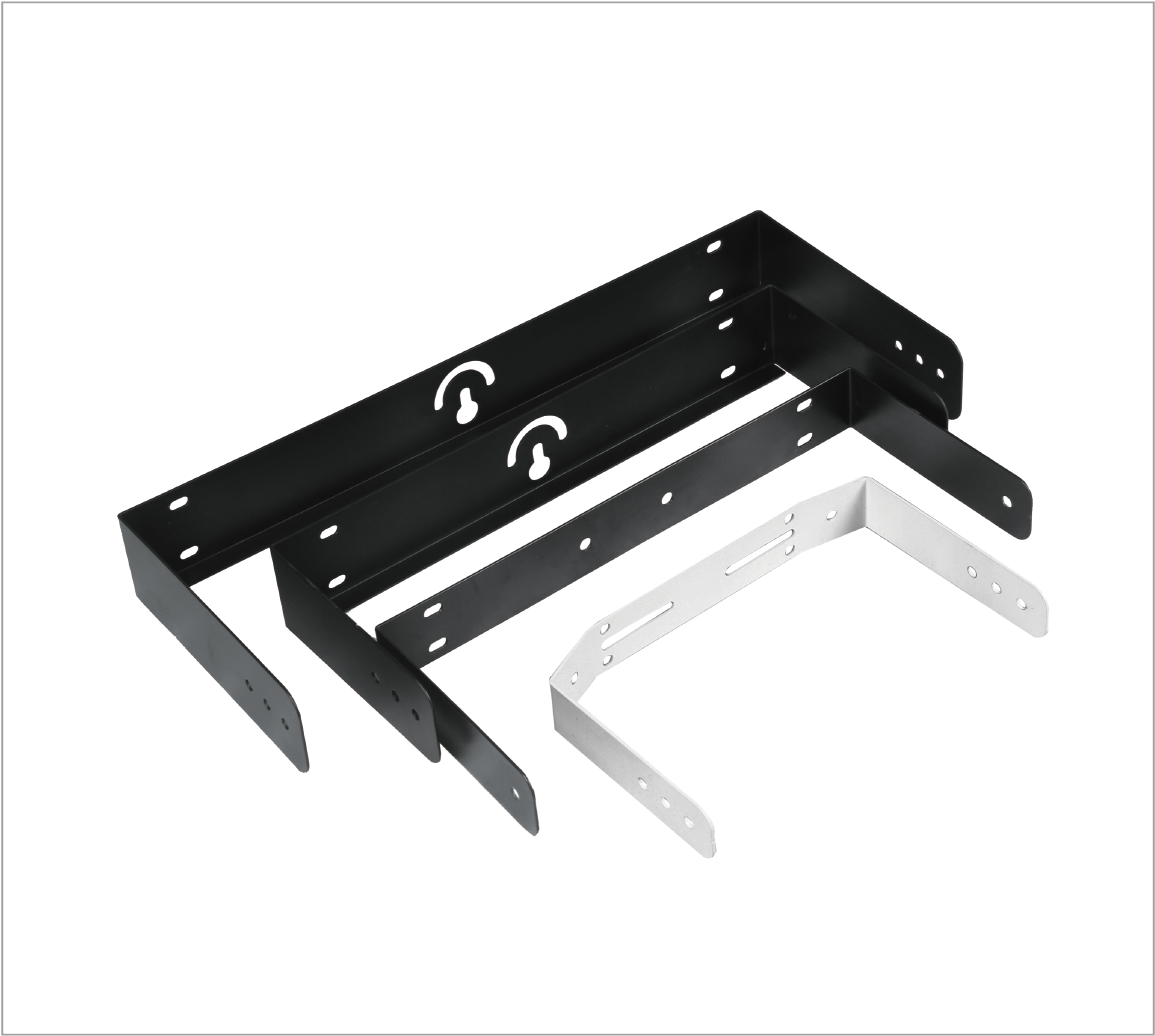

U type bracket
