FEATURES

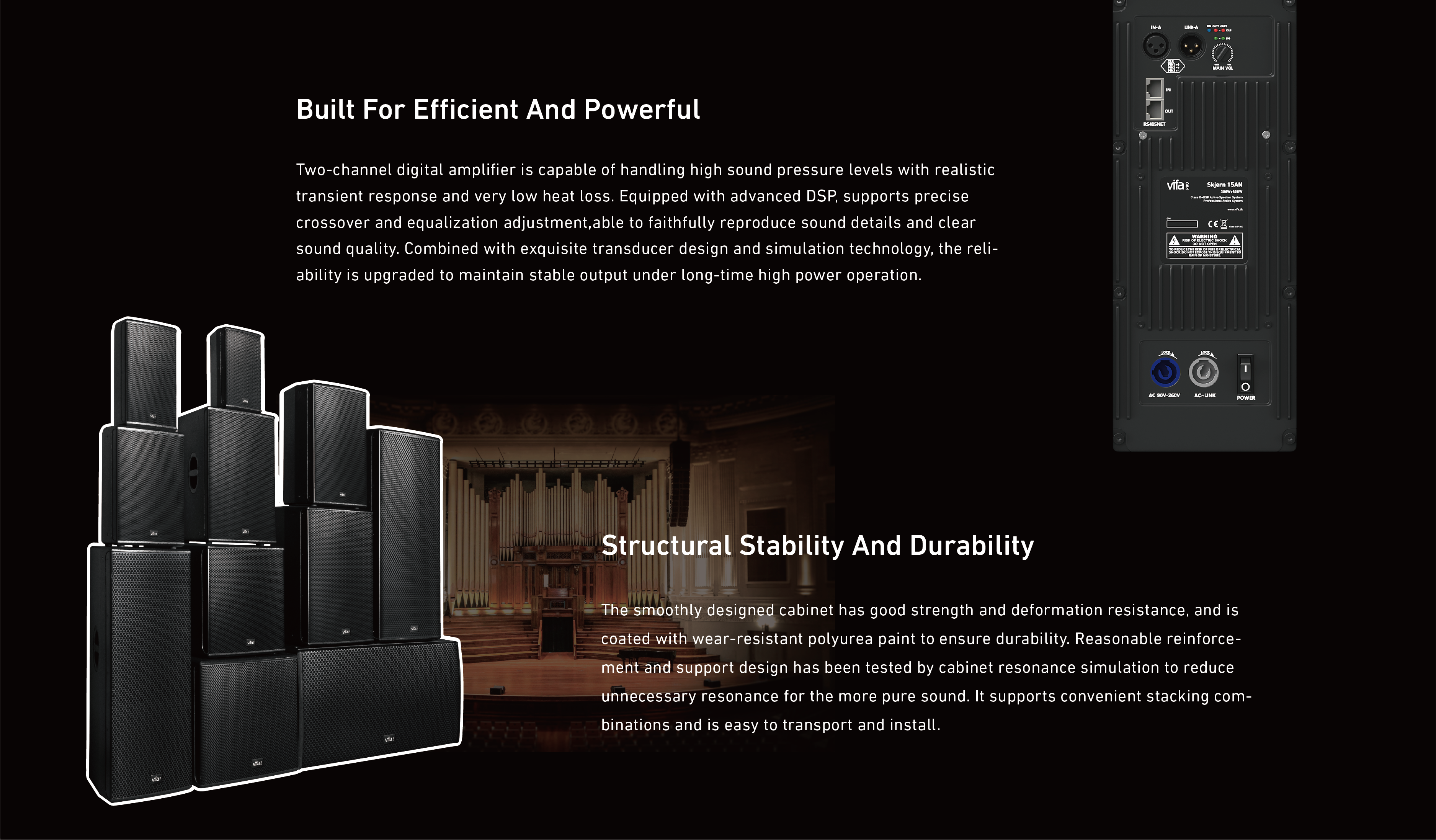

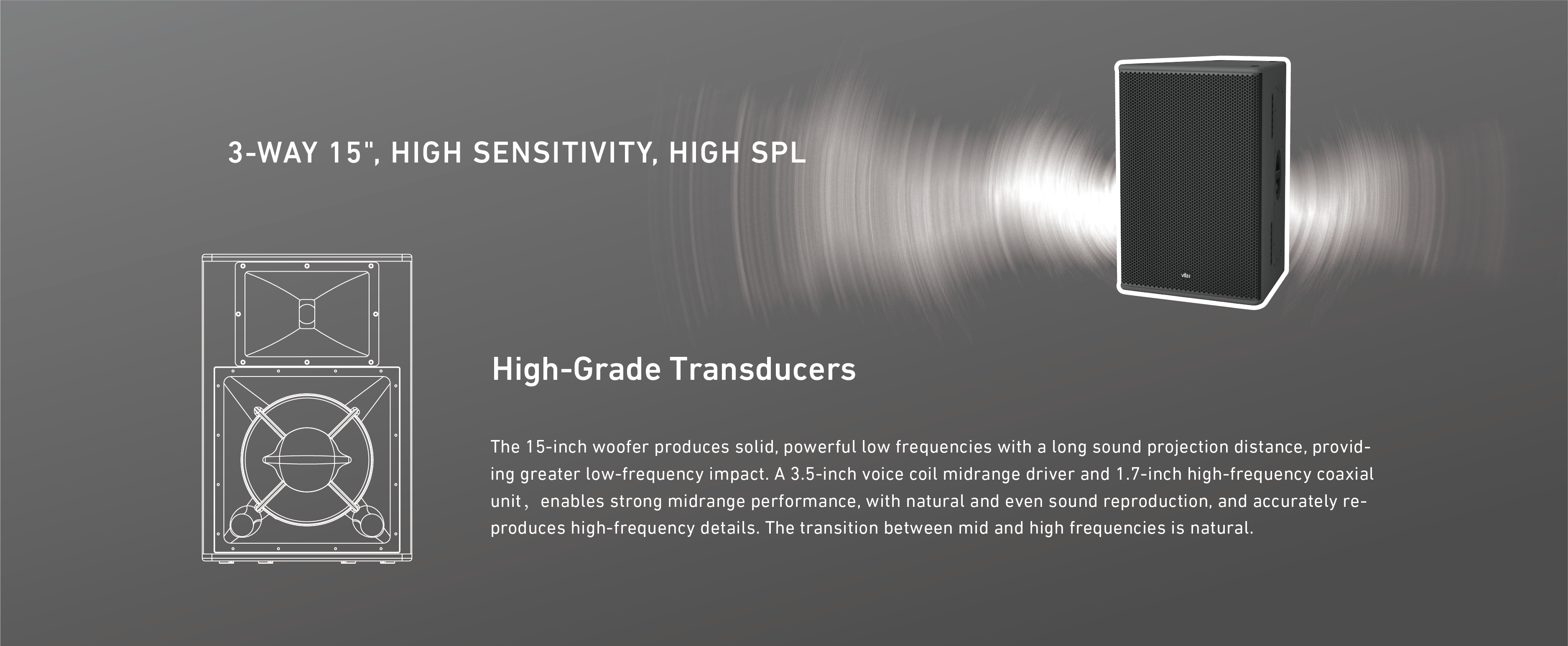

Skjern 15AN, a 3-way, 15-inch high-sensitivity loudspeaker, delivers balanced, clear and bright sound quality with its high SPL and long-stroke design. The configuration includes 1 x 15-inch high-efficiency neodymium bass/midrange unit, 1 x 2-inch exit-throat 90mm voice coil neodymium midrange driver, and a 44mm neodymium high-frequency coaxial unit. The cabinet is made of multi-layer composite plywood and coated with abrasion-resistant polyurea paint for enhanced durability. A dual-channel digital amplifier with built-in DSP brings precise audio processing power to the Skjern 15AN..
TECHNICAL SPECIFICATIONS
- TECHNICAL SPECIFICATIONS
-
FREQUENCY RESPONSE
50Hz-18kHz
-
DRIVERS
1x15"(385mm)/3"voice coil LF1x2"(50mm)/3.5"voice coil MF1x2"(50mm)/1.7"voice coil HF
-
RATED POWER
300W/8Ω+800W/8Ω
-
MAXIMUM SPL
126 dB continuous, 132 dB peak
-
DISPERSION(-6dB)
70°x40°
-
CONNECTORS
INPUT TYPE: Balanced Differential Line
-
DIMENSIONS
(W)540mm x (H)790mm x (D)540mm
-
NET WEIGHT
44kg/pc

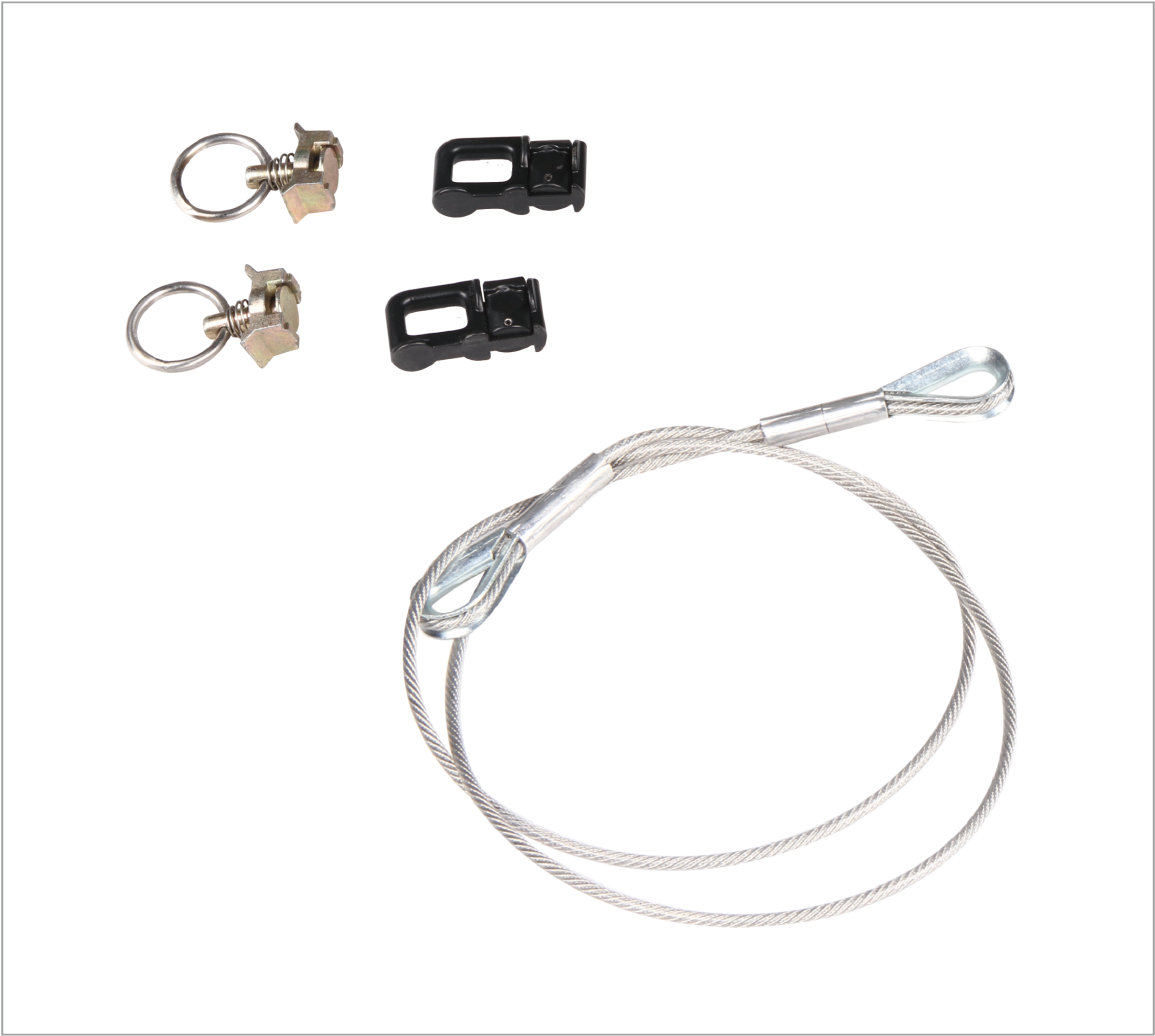

Accessories

LOCK & STEEL WIRE ROPE
