ICB-1106-106-N

$99.90

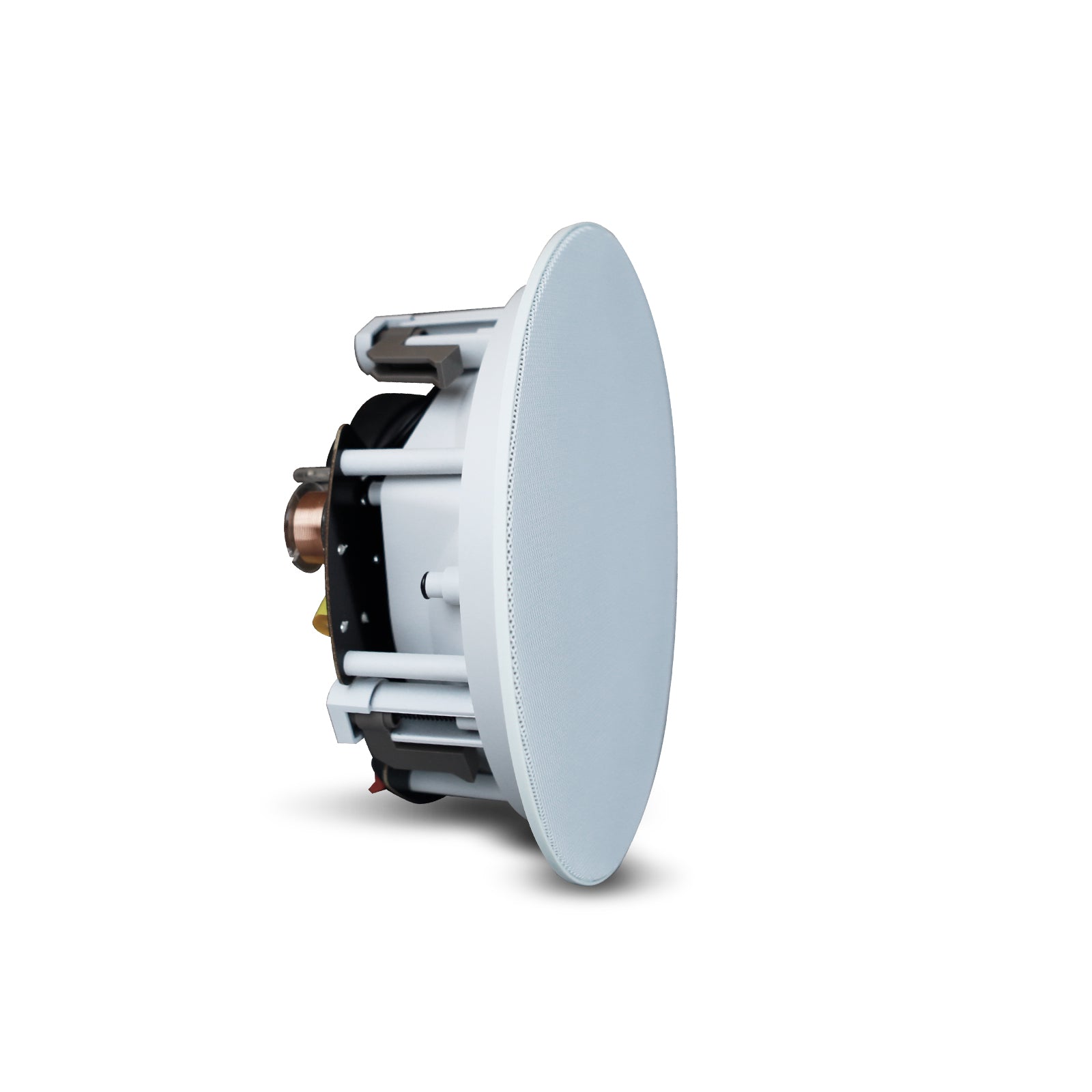

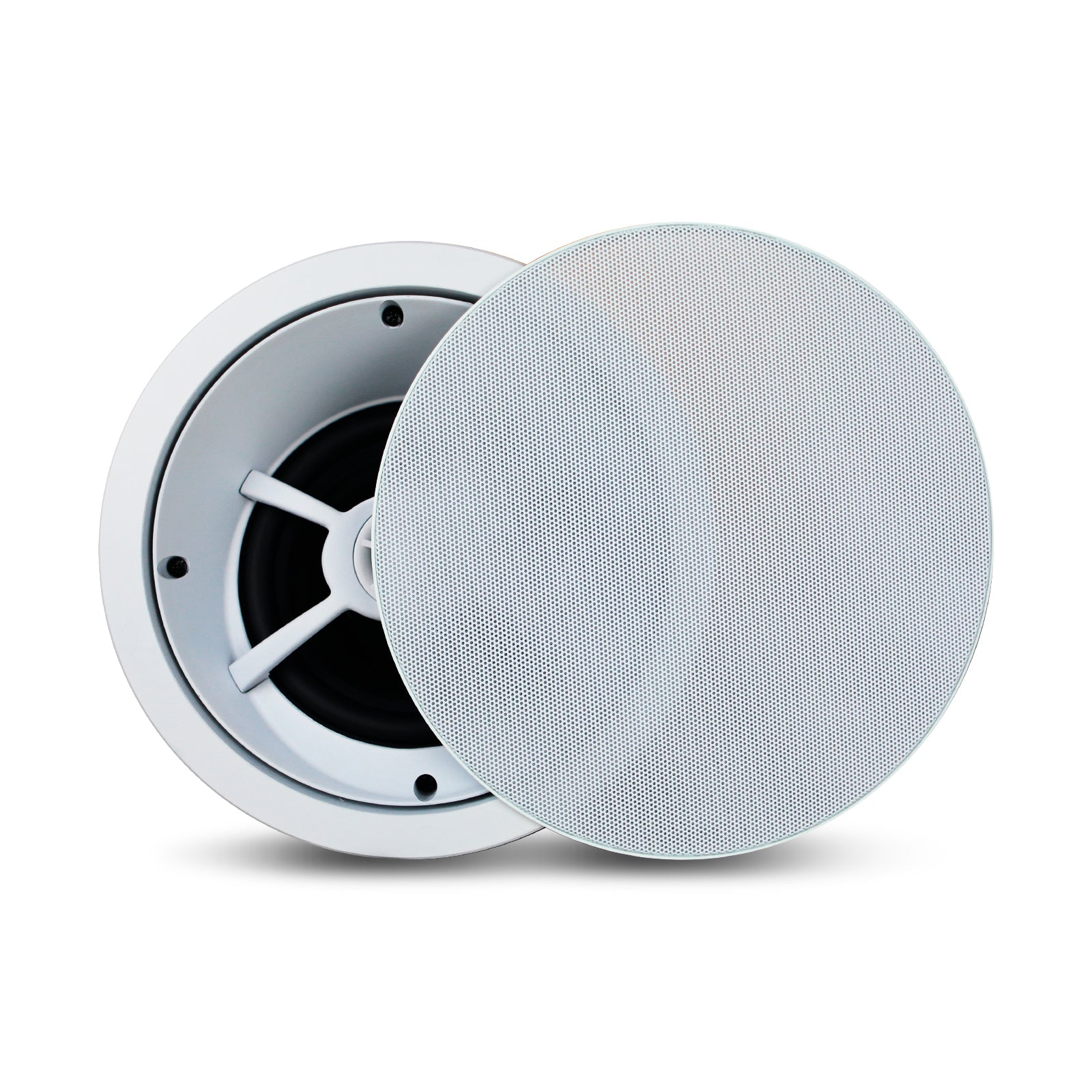

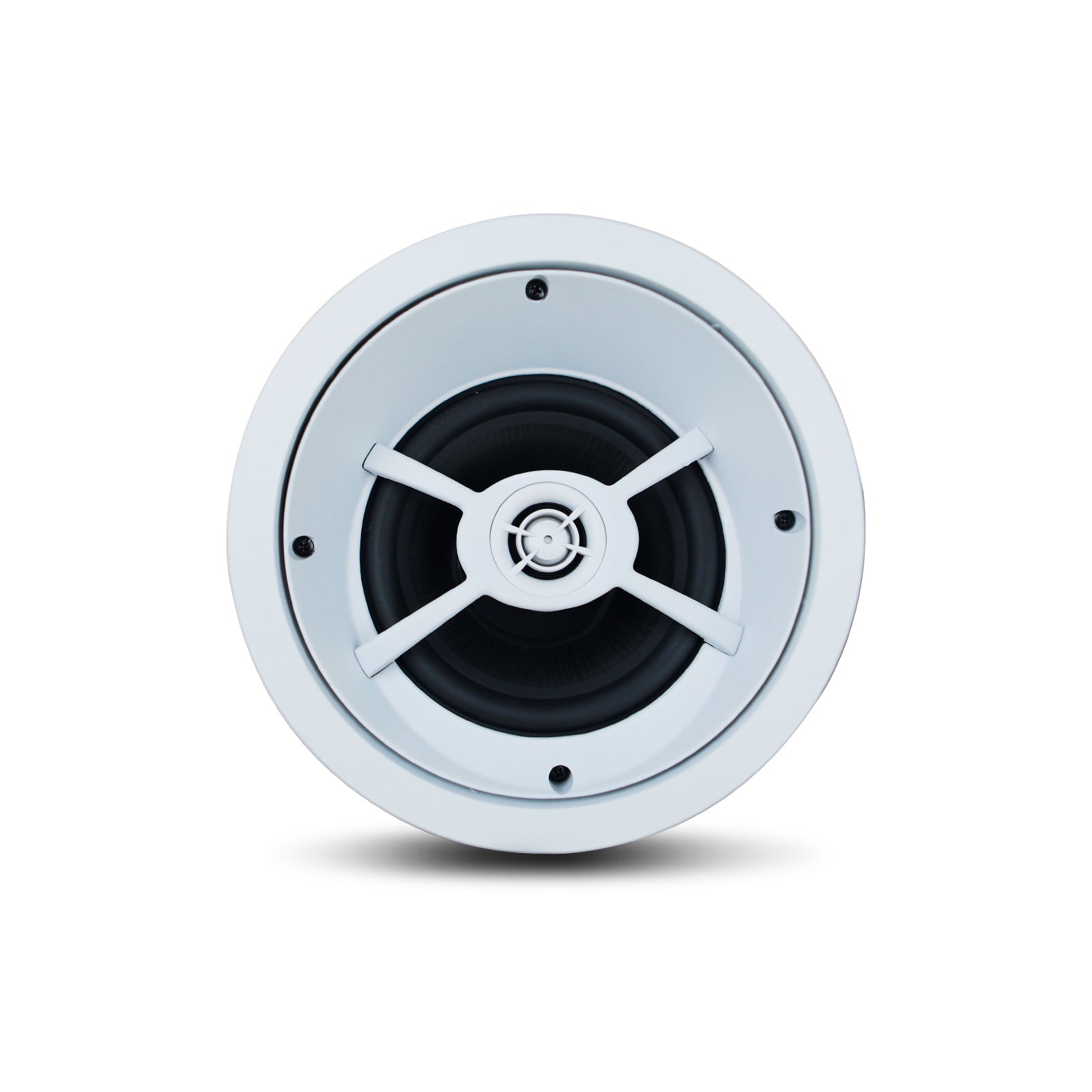

Product Name 6.5" Angled LCR  Ceiling Speaker
Drivers 6.5" Graphite WooferFixed at a 15° Angle1″ Pivoting Aluminum Dome Tweeter
Frequency Range (-10dB) 60Hz – 20kHz
Sensitivity 86dB 1W/1m
Coverage Angle 90° conical
Maximum SPL (1m) 103dB continuous,106dB peak
Impedance 8 Ohms
Transformer Taps Without transformer
Recommended Protective High Pass 45 Hz high-pass 24dB/oct for 8ohm direct
Power Capacity (at low-Z) 50 Watts Continuous Program Power/30 Watts Continuous Pink Noise
Input Connectors Plastic spring connector
Tap Selector Without tap selector
Materials ABS surface frame
Grille Color White
Safety Agency
Dimensions (Diameter & Depth) 9-¼” x 4-9/16″
Net Weight 2.215 kg(one speaker)
Shipping Weight 2.65kg ea;8.8 kg ( 3 PCS in master carton)
Ceiling Cutout Size 8-¼”
Suspension / Safety-Seismic Attachment Points Installer-friendly Dog Ear Installation Brackets
Power Rating 2.5 - 50W
Color White
Backcan Without Backcan
Baffle/Rim ABS baffle
Plenum Usage Without Plenum
