FEATURES

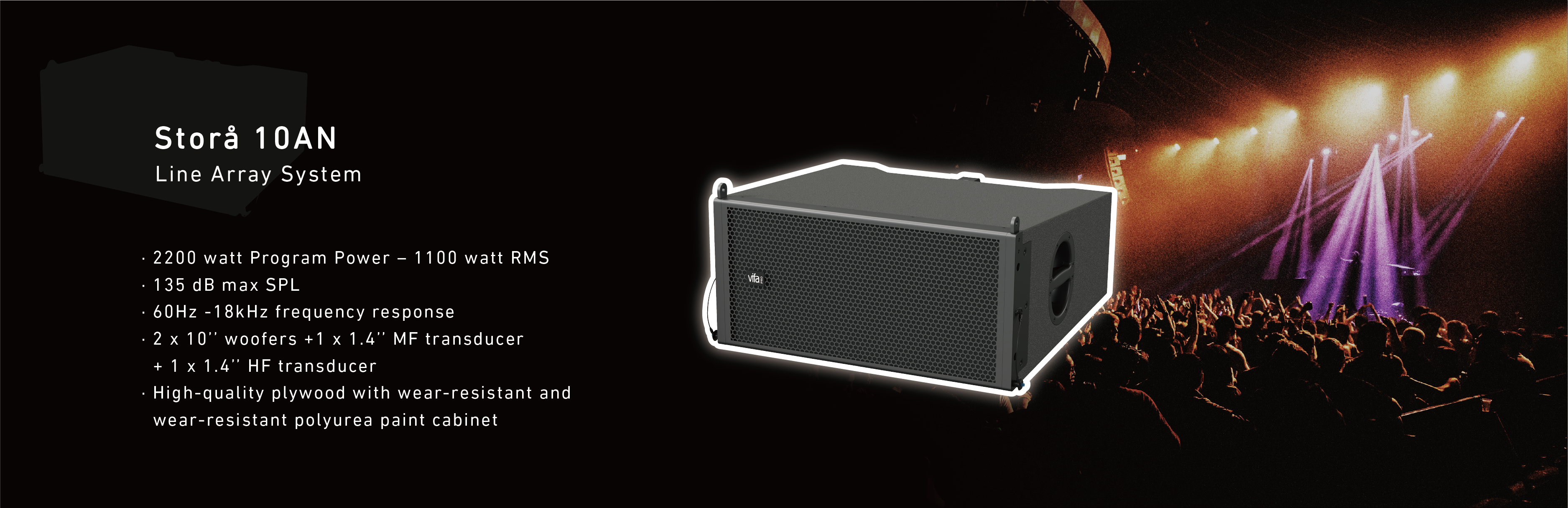

Storå 10AN is a compactly designed three-way line array loudspeaker that stands out for its lightweight body and high SPL performance. It features a low-distortion neodymium magnetic bass/midrange unit and a coaxial mid- and high-frequency driver with customized waveguide and horn to ensure precise and consistent sonic coverage. A three-point suspension system provides a fast, stable and secure installation solution.
The unit configuration includes 2 x 10-inch high-efficiency neodymium magnetic mid-woofers, 1 x 1.4-inch exit-throat 90mm voice coil neodymium magnetic mid-high-frequency driver, and 1 x 44mm high-frequency coaxial neodymium magnetic unit. As an active loudspeaker, the Storå 10AN comes with a built-in DSP-controlled, two-channel digital amplifier, which ensures high-fidelity processing of the audio signal.






TECHNICAL SPECIFICATIONS
60Hz-18kHz
2 X10"(250mm)/3" voice coil LF
1 X1.4"(36mm)/ 3.5" voice coil MF
1 X1.4"(36mm)/ 3.5" voice coil HF
300W/8ohms+800W/8ohms RMS
600W/8ohms+1600W/8ohms Program
-
127 dB continuous, 133 dB peak
8 ohms nominal
Horizontal coverage : 90
Vertical coverage: varies, depending on
array length and configuration
800Hz passive
INPUT TYPE: Balanced Differential Line
(W)625mmX(H)313mmx(D)523.5mm
28kg/pc
Accessories

Connect plate

Rigging frame
