FEATURES

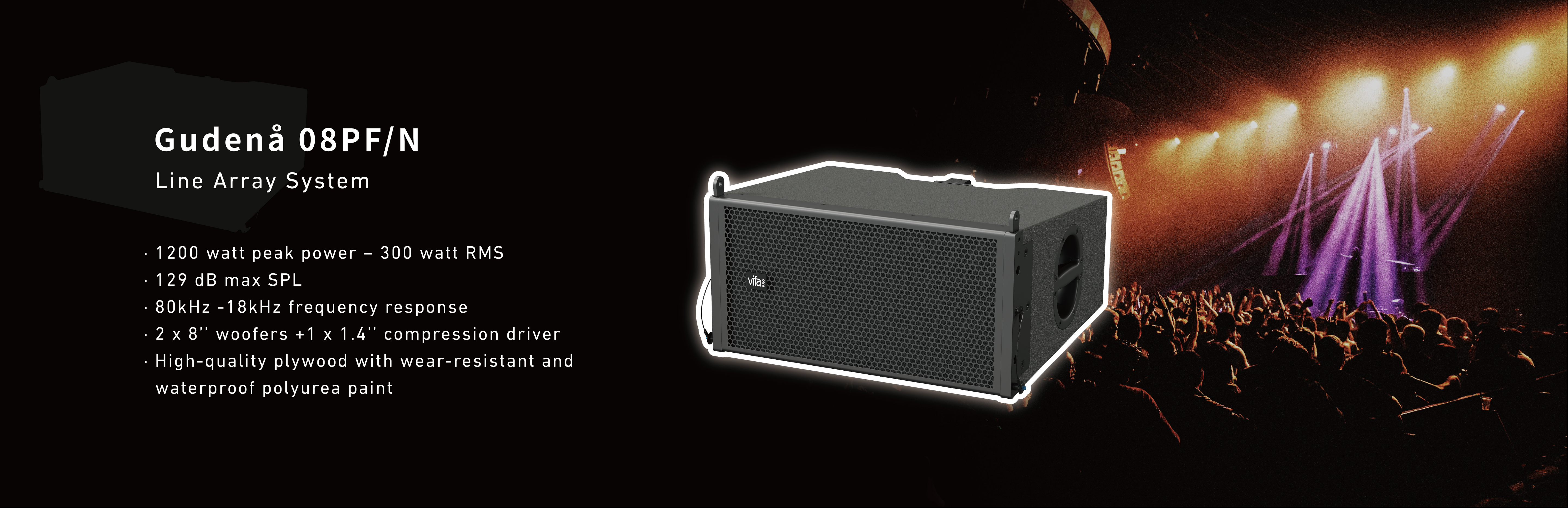

Gudenå 08PF, a medium-sized line array loudspeaker, has gained favor in the market for its precise sound field directionality, compact body design and excellent SPL. It integrates a low-distortion bass/midrange driver and a high-quality high-frequency driver with customized waveguide and horn to ensure even sound distribution. Its aluminum alloy frame suspension system not only enhances the ease and safety of installation, but also supports multi-unit array configurations. The speaker unit configuration includes dual 8-inch bass/midrange drivers and a 1.4-inch exit throat with a 75mm voice coil. The cabinet is constructed of multi-layer composite plywood with a wear-resistant and water-resistant polyurea coating for enhanced durability.






TECHNICAL SPEIFICATIONS
80Hz-18kHz
2 X8"(200mm)/2"voice coil LF
1 X1.4"(36mm)/ 3" voice coil HF
300W RMS, 1200W peak
98dB 1watt/1 meter
123 dB continuous, 129 dB peak
8 ohms nominal

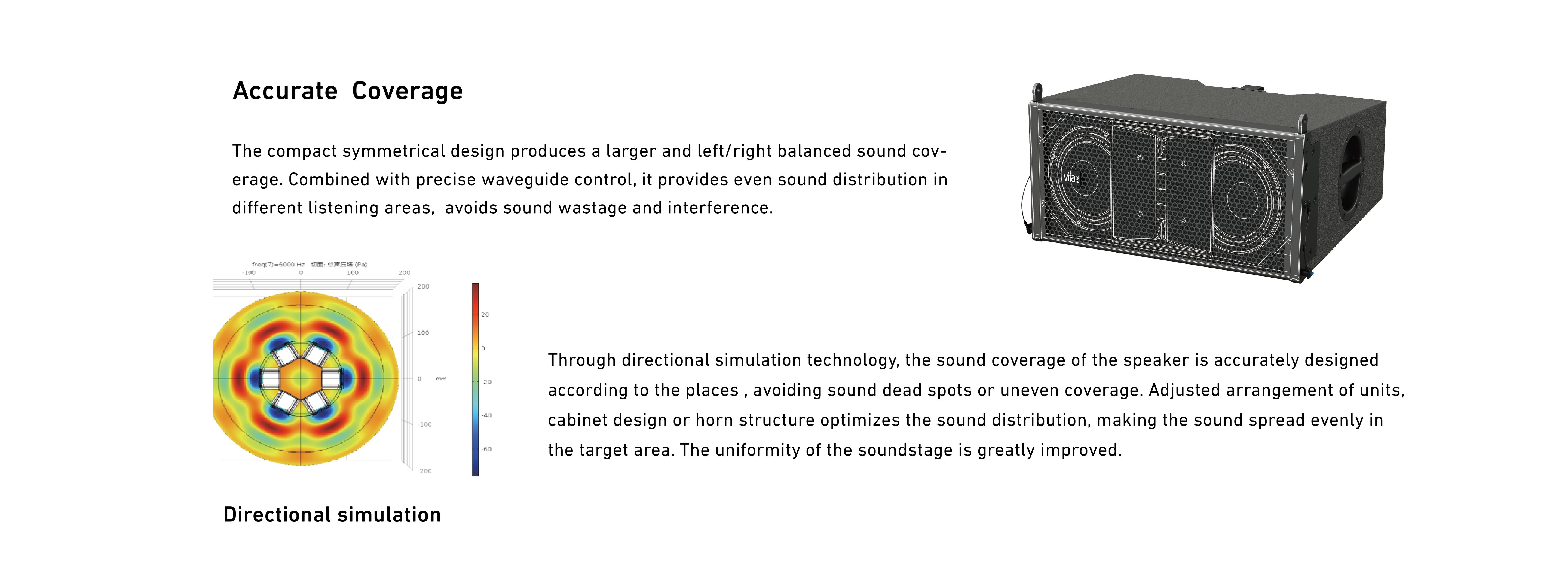

Horizontal coverage : 90
Vertical coverage: varies, depending on
array length and configuration
900Hz passive
2 xSpeakon NL4
(W)560mmX(H)279.5mmx(D)425mm
25.5kg/pc
Accessories

Connect plate

Rigging frame
