ICB-1108-108-F

$108.90

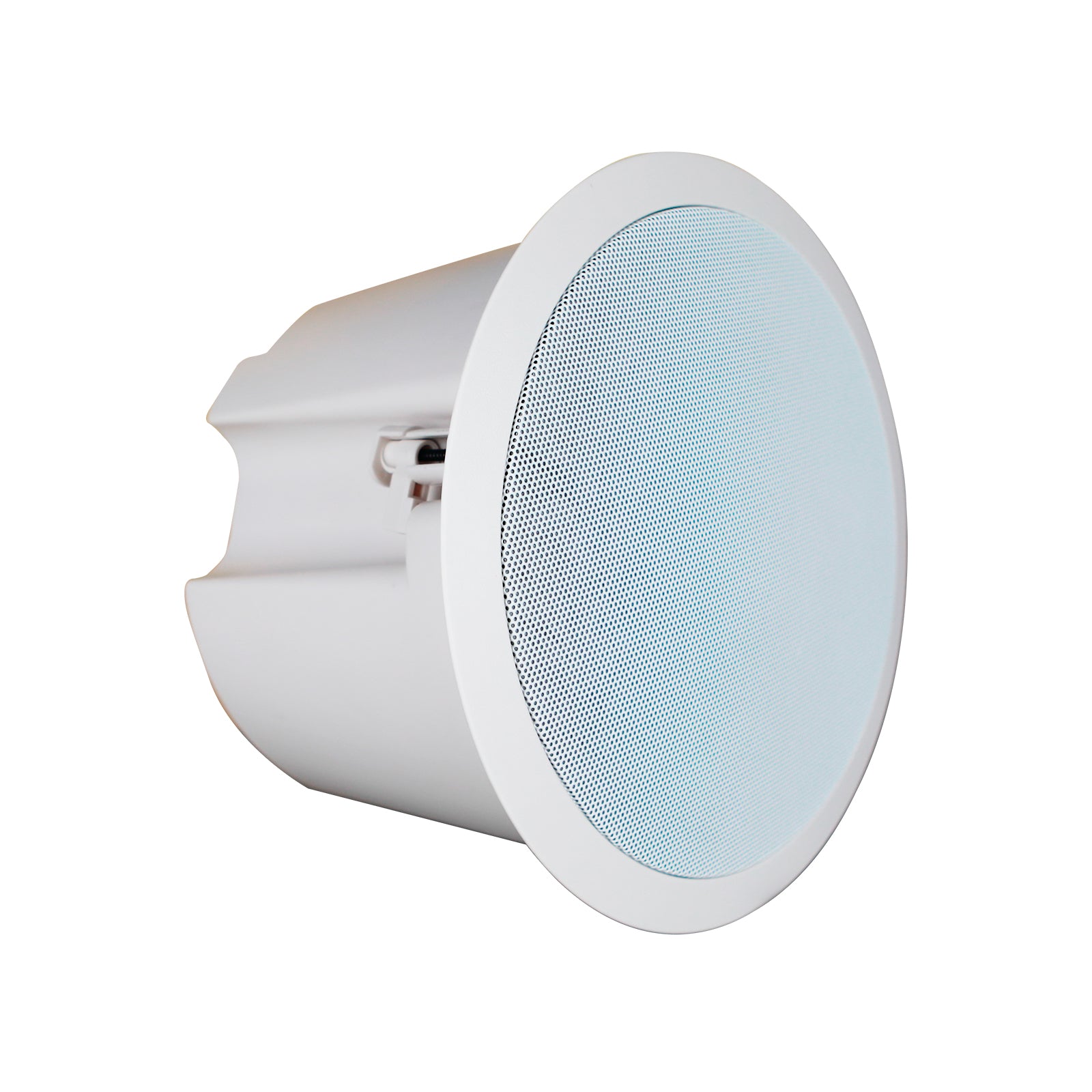

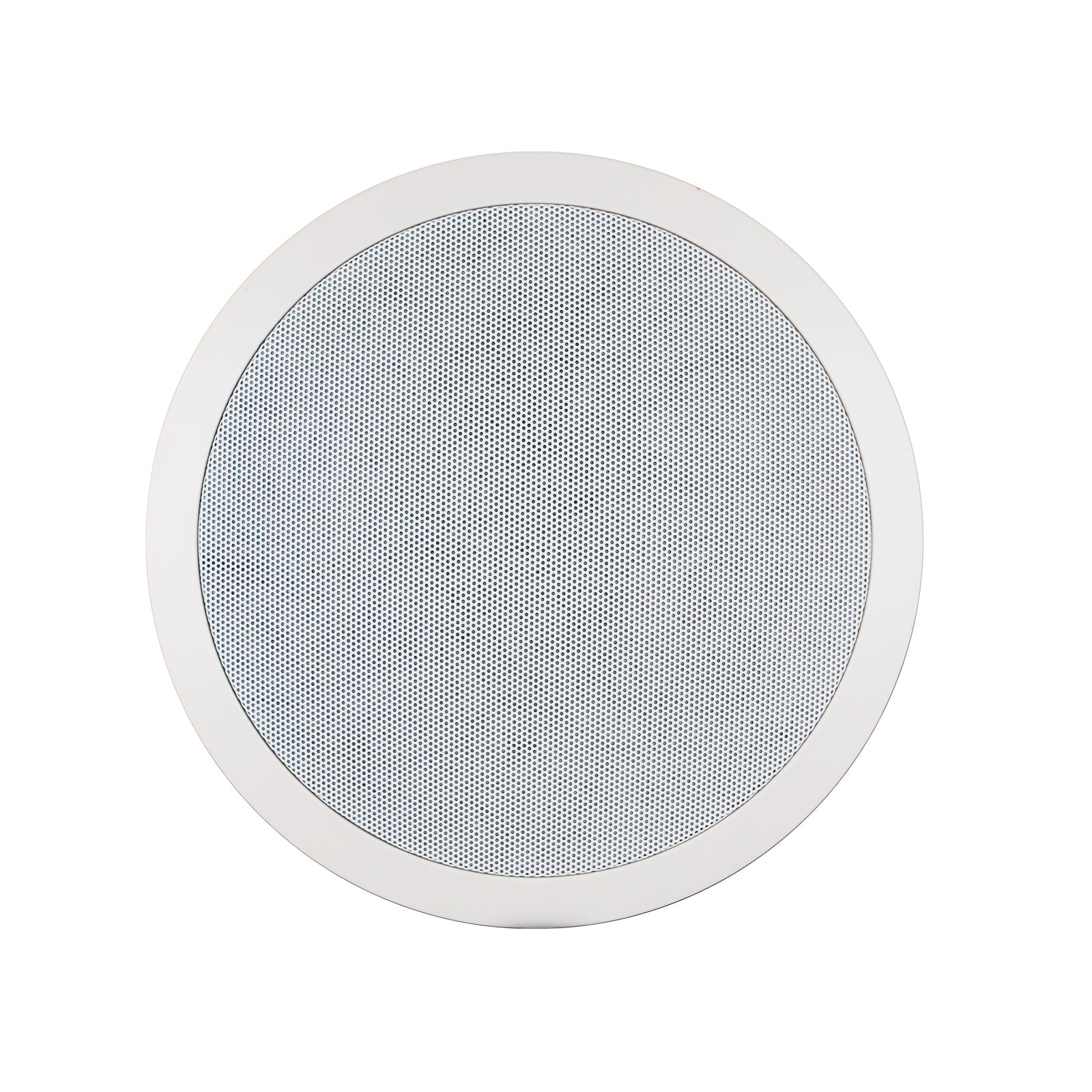

Product Name 8" 70V Commercial Ceiling Speaker with Back Can
Drivers Woofer: 8" Polypropylene Cone with Rubber Surround, Tweeter: 0.5" PEI Dome
Frequency Range (-10dB) 70Hz-20kHz
Sensitivity 88dB 1w/1m
Coverage Angle 90° Angle
Maximum SPL (1m) 105dB continuous,108dB peak
Impedance 8 Ohms
Transformer Taps 30W, 15W, 7.5W& 8 Ω
Recommended Protective High Pass 60 Hz high-pass 24dB/oct for 8ohm direct
Power Capacity (at low-Z) 60 Watts Continuous Program Power/30 Watts Continuous Pink Noise
Input Connectors Gold-plated spring connector
Tap Selector Rotary switch accessible from side of backcan
Materials ABS surface frame,ABS backcan
Grille Color White
Safety Agency
Dimensions (Diameter & Depth) 11" x 7"
Net Weight 2.25 kg(one speaker)
Shipping Weight 3.15 kg ea;11.8 kg ( 6 PCS in master carton)
Ceiling Cutout Size 9.31"
Suspension / Safety-Seismic Attachment Points Installer-friendly Dog Ear Installation Brackets,Stainless steel crochet hook
Power Rating 2.5 - 60W
Color White
Backcan ABS
Baffle/Rim ABS baffle
Plenum Usage Yes, backcan included
